Galvanized Steel Coil

Galvanized coil has good paint adhesion and weldability. Galvanized steel products are mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries.

Classification ：

Galvanized Coil

+8615806975270

manager@sdsanjinsteel.com

E-mail

Related Products

Online Message

PRODUCT DETAILS

Galvanized coil is a thin steel sheet that is dipped in a molten zinc bath to make a layer of zinc adhere to its surface.

It is mainly produced by continuous galvanizing process: the coiled steel plate is continuously dipped in a galvanizing tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate.

This kind of steel panel is made by hot dip method, and it is heated to about 500℃ immediately after coming out of the tank, so that it can form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability.

Galvanized Coils
Place of Origin:	China
Type:	Steel Coil; Steel Sheet; Steel Strip
Standard:	AISI, ASTM, BS, DIN, GB, JIS, etc.
Certificate:	ISO9001; CE
Grade:	SPCC,SPCD,SPCE/DC01.DC02.DC03/ST12,Q195, etc
Thickness:	0.1-5.0mm, or produce upon request
Surface structure:	Anti-finger print /skin pass/oiled/ dry/chromated Zero spangle, small spangles, large spangles
Size:	Customized according to customer needs
Tolerance:	±1%
Processing Service:	Bending, Welding, Decoiling, Cutting, Punching, Welding, Prepainted, ect.
Delivery Time:	7-25 days
Technique:	Hot Rolled, Cold Rolled
Port:	Tianjin, Qingdao or according to your requirement
Packaging Details	in bundles, in bulk, customized packing.

Galvanized steel products are mainly used in construction, light industry, automobile, agriculture, animal husbandry, fishery and commercial industries. Among them, the construction industry is mainly used to manufacture anti-corrosion industrial and civil building roof panels, roof grilles, etc.; the light industry industry uses it to manufacture household appliance shells, civil chimneys, kitchen utensils, etc., and the automotive industry is mainly used to manufacture corrosion-resistant parts for cars, etc. ; Agriculture, animal husbandry and fishery are mainly used for food storage and transportation, meat and aquatic products freezing processing tools, etc.

The use of galvanized steel and its specifications

Uses	Code	Yield Strength (MPa)	Tensile Strength (MPa)	Elongation at Break A80mm%
General uses	DC51D+Z	140 ~ 300	270 ~500	≧22
Stamping use	DC52D+Z	140 ~ 260	270 ~ 420	≧26
Deep drawing use	DC53D+Z	140 ~ 220	270 ~ 380	≧30
Extra deep drawing	DC54D+Z	120 ~ 200	260 ~ 350	≧36
Ultra-deep drawing	DC56D+Z	120 ~ 180	260 ~ 350	≧39
Structural uses	S220GD+Z	220	300	≧20
	S250GD+Z	250	330	≧19
	S280GD+Z	280	360	≧18
	S320GD+Z	320	390	≧17
	S350GD+Z	350	420	≧16
	S550GD+Z	550	550	/

Material	Chinese Code	Japanese Code	European Code
Commercial Use	DX51D+Z/DC51D+Z (CR)	SGCC	DX51D+Z
Drawing Quality	DX52D+Z/DC52D+Z	SGCD1	DX52D+Z
Deep Drawing Quality	DX53D+Z/DC53D+Z/DX54D+Z/DC54D+Z	SGCD2/SGCD3	DX53D+Z/DX54D+Z
Structural Use	S220/250/280/320/350/550GD+Z	SGC340/400/440/490/570	S220/250/280/320/350GD+Z
Commercial Use	DX51D+Z/DD51D+Z (HR)	SGHC	DX51D+Z

Factory Appearance

Galvanized steel coil, immersing the thin steel plate in the molten zinc bath, adhering a layer of zinc
thin steel sheet on the surface.It is mainly produced by continuous galvanizing process, that is, the
coiled steel plate is continuously immersed in the zinc-melted plating tank to make galvanized steel
sheet; alloyed galvanized steel plate. This kind of steel plate is also made by hot dipped method,
but it is heated to about 500 ° C immediately after exiting the tank to form an alloy film of zinc and
iron.This galvanized coil has good paint adhesion and weldability.
Hot-dip galvanizing is the reaction of molten metal with an iron substrate to produce an alloy layer, thereby combining the substrate and the plating layer. Hot-dip galvanizing is to pickle iron and steel parts first. In order to remove iron oxide on the surface of iron and steel parts, after pickling, it is cleaned in an ammonium chloride or zinc chloride aqueous solution or a mixed solution of ammonium chloride and zinc chloride. And then sent to the hot-dip plating bath. Hot-dip galvanizing has the advantages of uniform coating, strong adhesion and long service life.

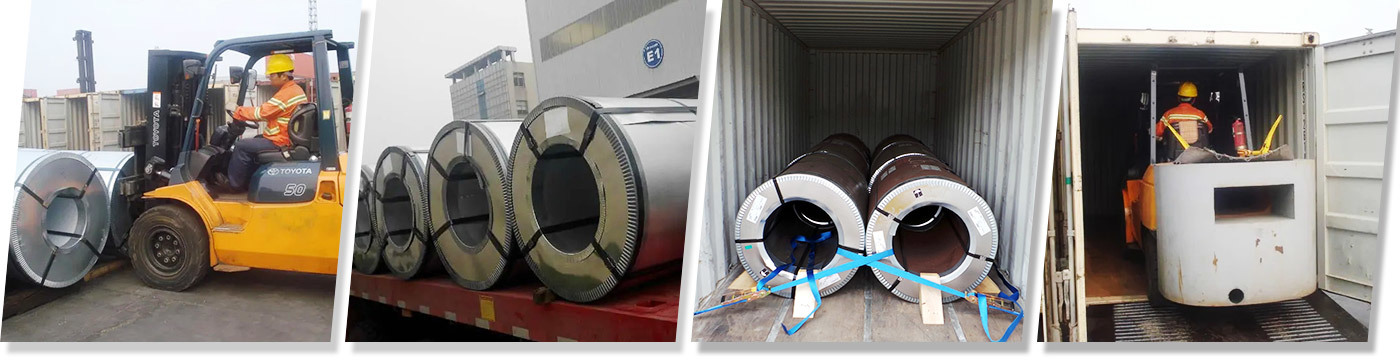

Packing and shipping
The sheets is packed with PVC film or water-proof kraft in the first layer, the second layer is iron sheet package, then wrapped
on the metal pallet or metal square tube with steel strip.
It's is water-proof and sea-worthy, and warmly welcomed by the customers. besides,the pakage can also be according to
your demands.
Shipping
1. Shipping by containers
2. Shipping by bulk ship.

Customer conversation

Since its establishment, our company has always adhered to the principle of "quality and progress, integrity and trust".

Application area

Galvanized sheet coil is produced by continuous hot dipped galvanizing process with hot rolledor cold rolled steel strip as substrate.Hot dip galvanized sheet supplied by cutting across rectangularplates;and hot dipGalvanized Coil supplied by coiling Galvanized sheet coil can be divided into hot rolled galvanized sheet coil and cold rolledhot-galvanized sheet coil, their characteristics are:Corrosion Resistance, good surface quality, benefit from deep processing,economic and practical, etc.
Galvanized Steel Coils are produced through a process of metal coating which involves passing could rolled coils through a kettle containing molten zinc. This process ensures adhesion of zinc to the surface of the steel sheet. The Zinc Layer provides excellent corrosion resistance and prolong service life.
Hot dipped galvanized products are widely used in hosehold appliances, transort, container manufacturing, roofing, base material for pre-painting, ducting and other construction related applications.
In the automotive industry: to manufacture external and internal car body parts, as well as to repair external public transport body parts, for buses and trams.
In the construction industry: to manufacture structural elements low-rise construction, light steel thin-walled structures,sandwich panels, lining of heat pipelines and various heat insulation, conditioning systems, metal roof shingle, profiled sheeting, culvert pipes, cladding of elevators,etc
